Riding Mower 2" Hitch Receiver Parts (DXF File Pack)

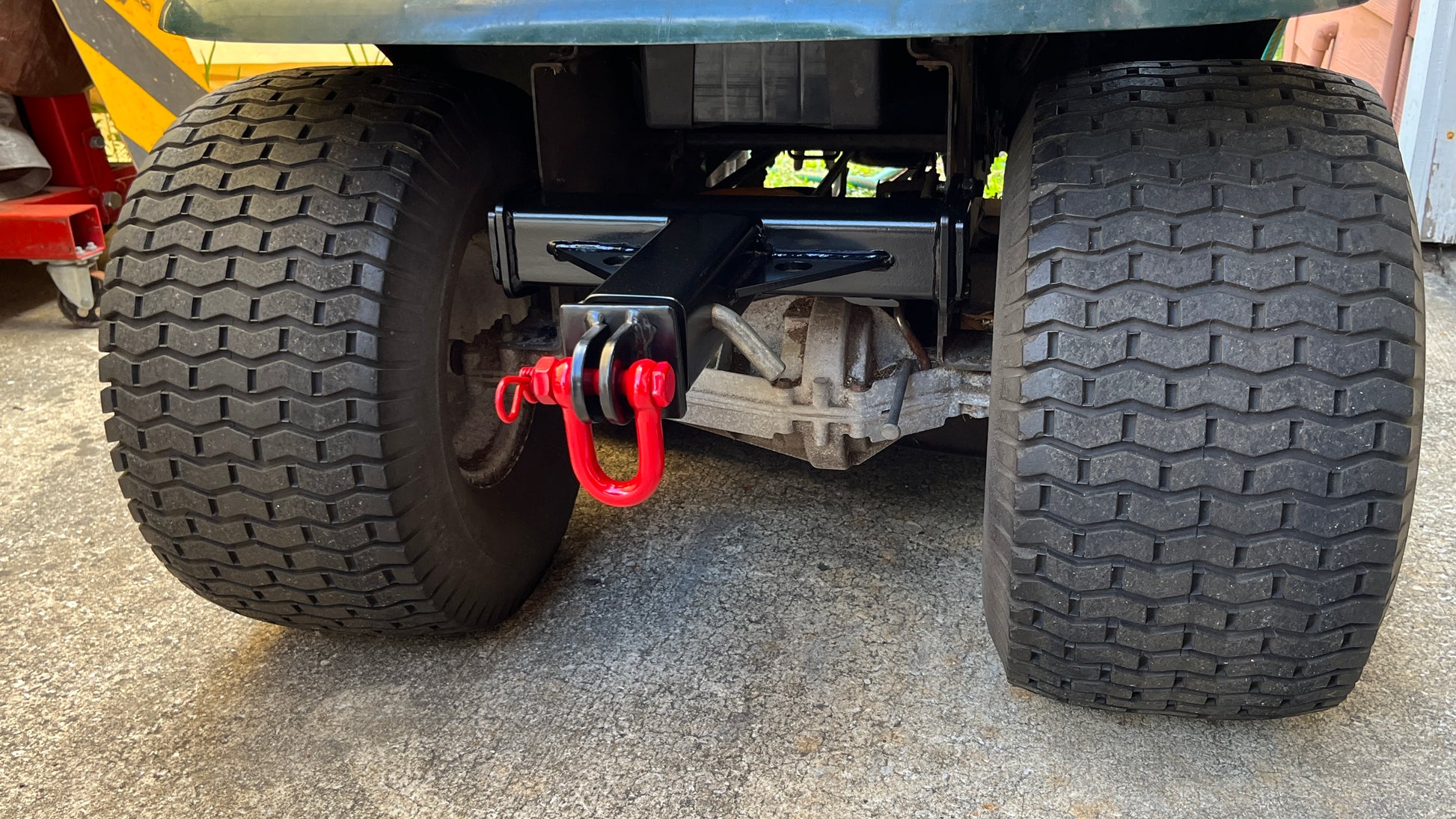

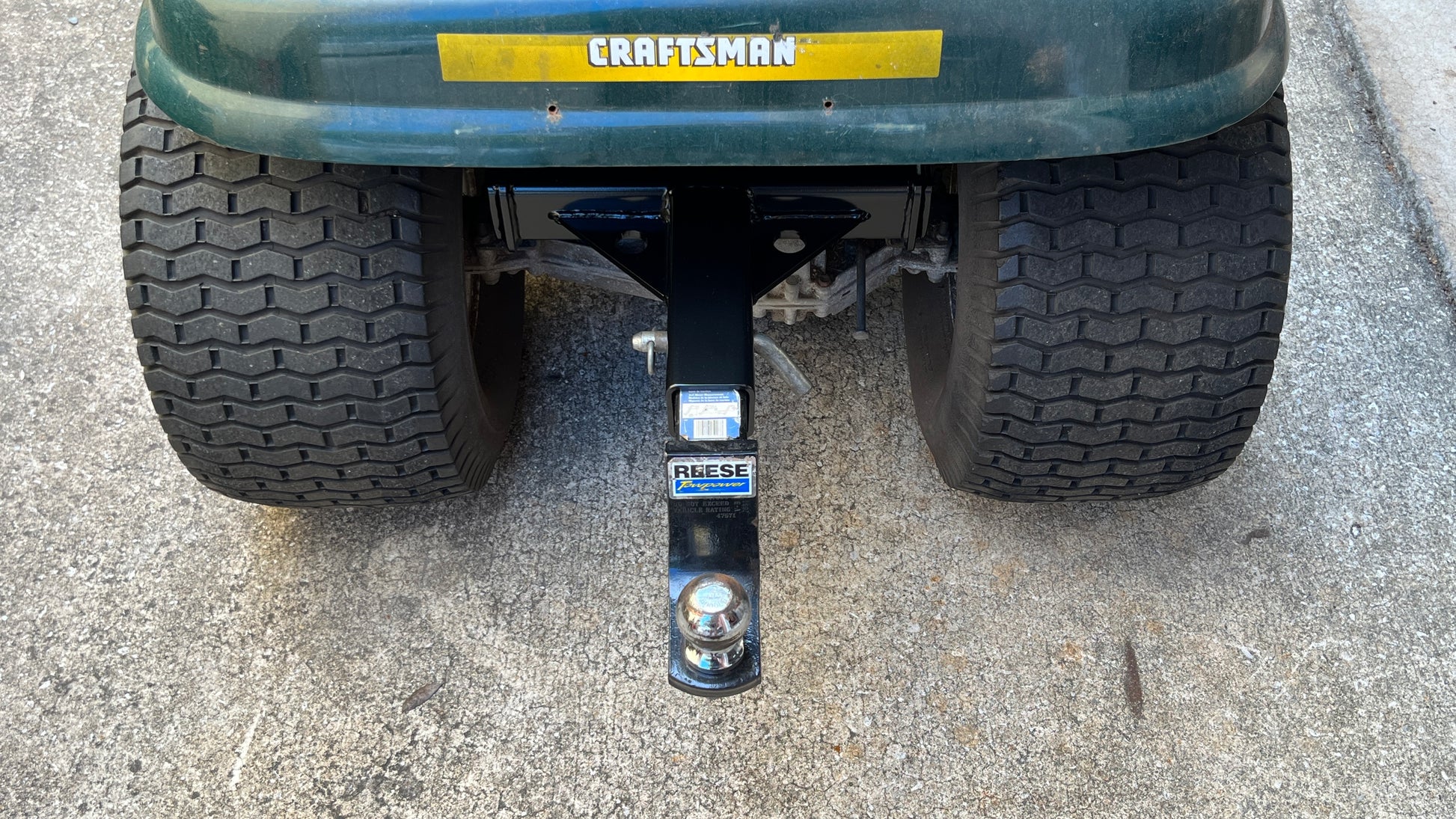

This is the full DXF file pack for the 2" hitch receiver mount I built for my Craftsman LT1000 (and similar style riding mowers). Follow along with the build step-by-step by watching the video below.

The mount uses 2.5" x 2.5" x 3/16" steel square tubing along with the parts included in this digital download. The DXF files give you clean, cut-ready brackets and gussets so you can plasma cut or laser cut all the flat pieces for the project.

Here’s what you get

This DXF pack includes all the flat-cut components needed for the mount:

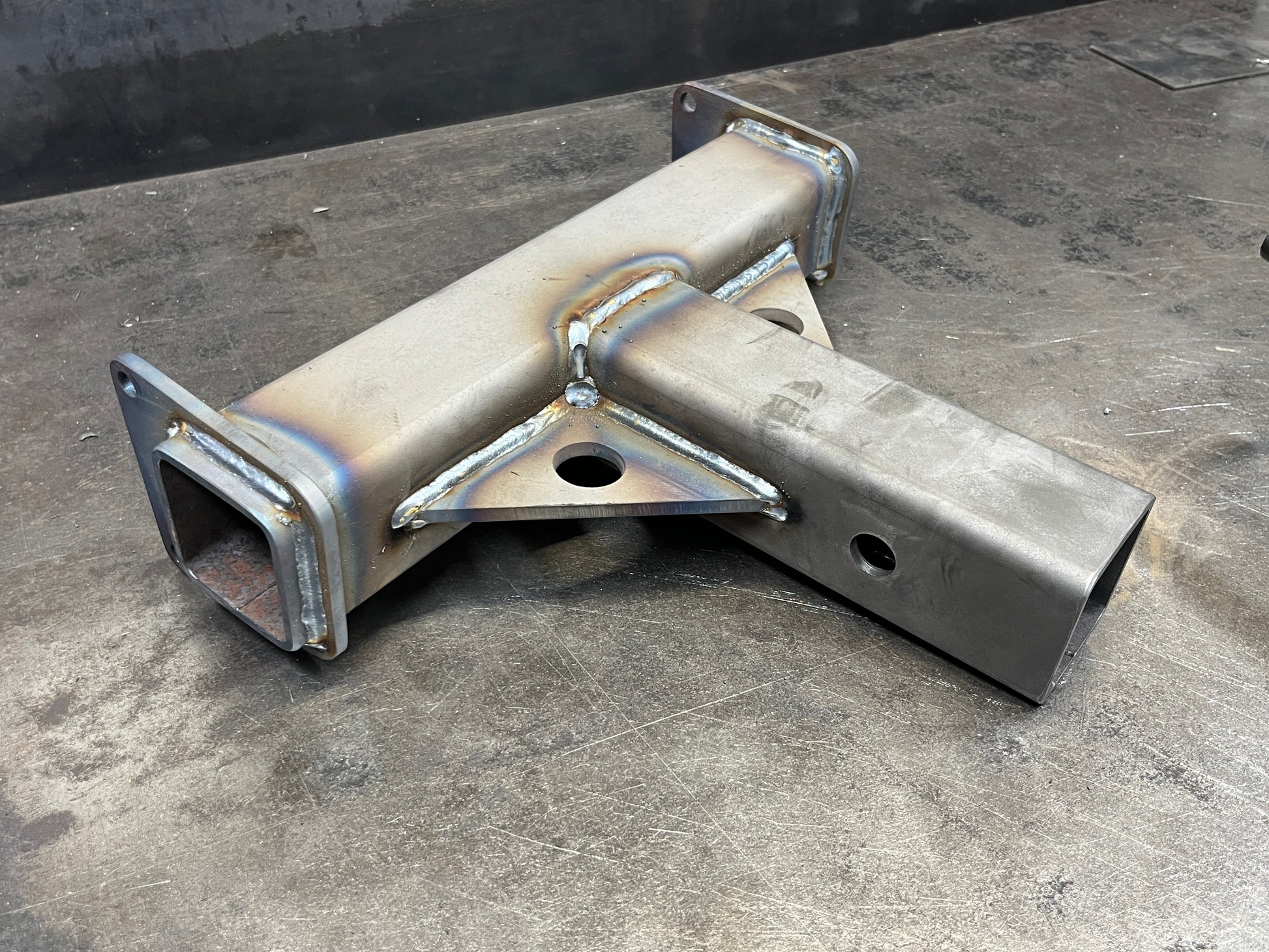

• Side Bracket (x2) – Designed to be cut from 1/4" steel

• Gussets (x2) – Also intended for 1/4" steel for extra strength

• Unlock Finger (x1) – Cut from 3/16" steel, used to engage the rod that unlocks the rear axle so the mower can be pushed

All files are set up for easy importing into your plasma or laser software and are sized correctly for the project.

Use them to recreate the hitch mount exactly like the one shown in the video or to modify it for your own setup.
