4x100 to 5x100 Dual Drill Hub Template

4x100 to 5x100 Dual Drill Hub Template

Regular price $39.99 USD
Regular price Sale price $39.99 USD
Sale Sold out
Shipping calculated at checkout.

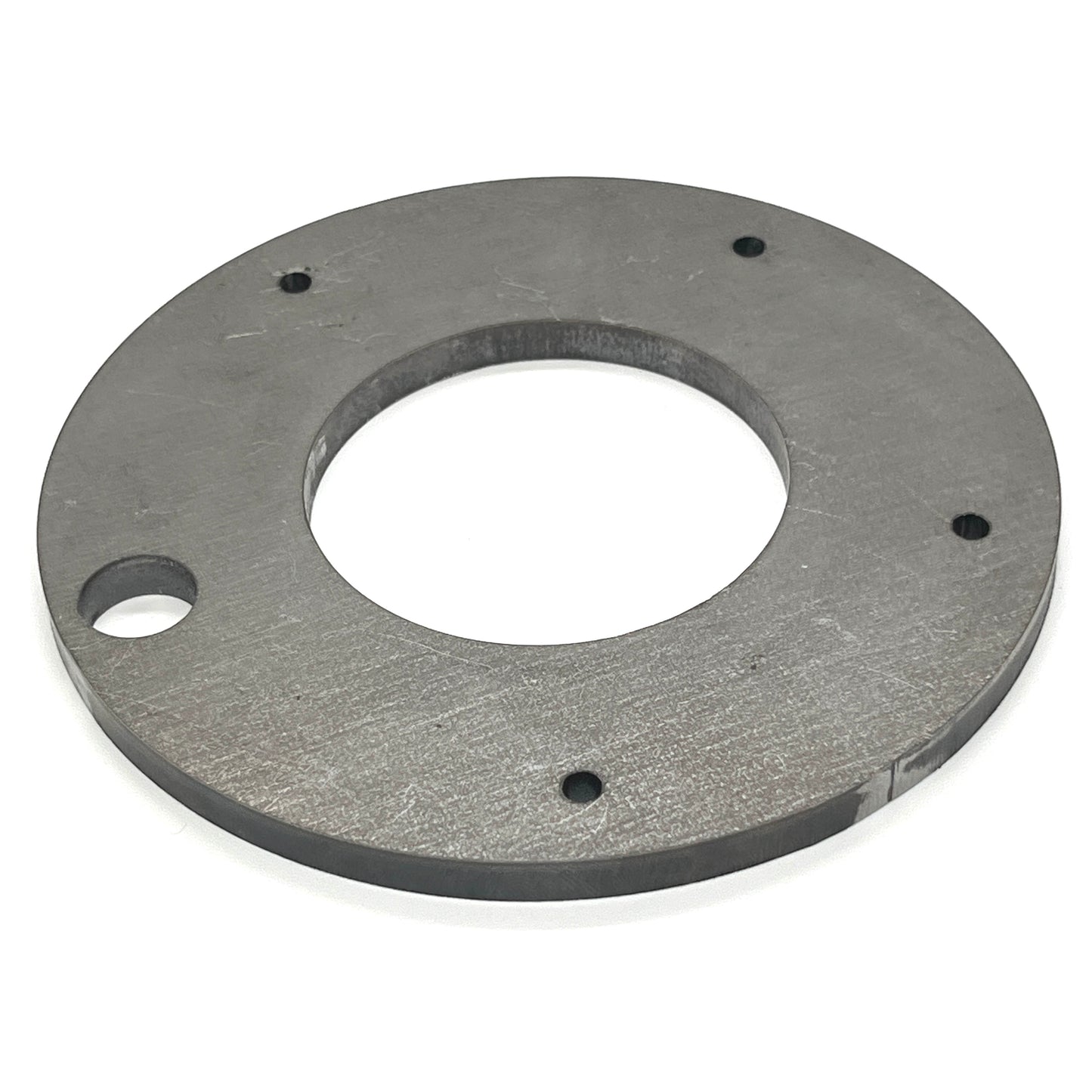

This wheel hub drilling template is designed for users who want to convert their MK2 or Mk3 Volkswagen's bolt pattern from 4x100 to 5x100. The template has a bore size of 57.2mm, ensuring a precise fit for every wheel. With this tool, you can easily drill new bolt holes in your hub, without the need for expensive equipment or professional installation. Can be done on or off of the vehicle. You will need to source an appropriate sized rotor for your application or drill out your 4x100 rotors.

Instructions are as follows:

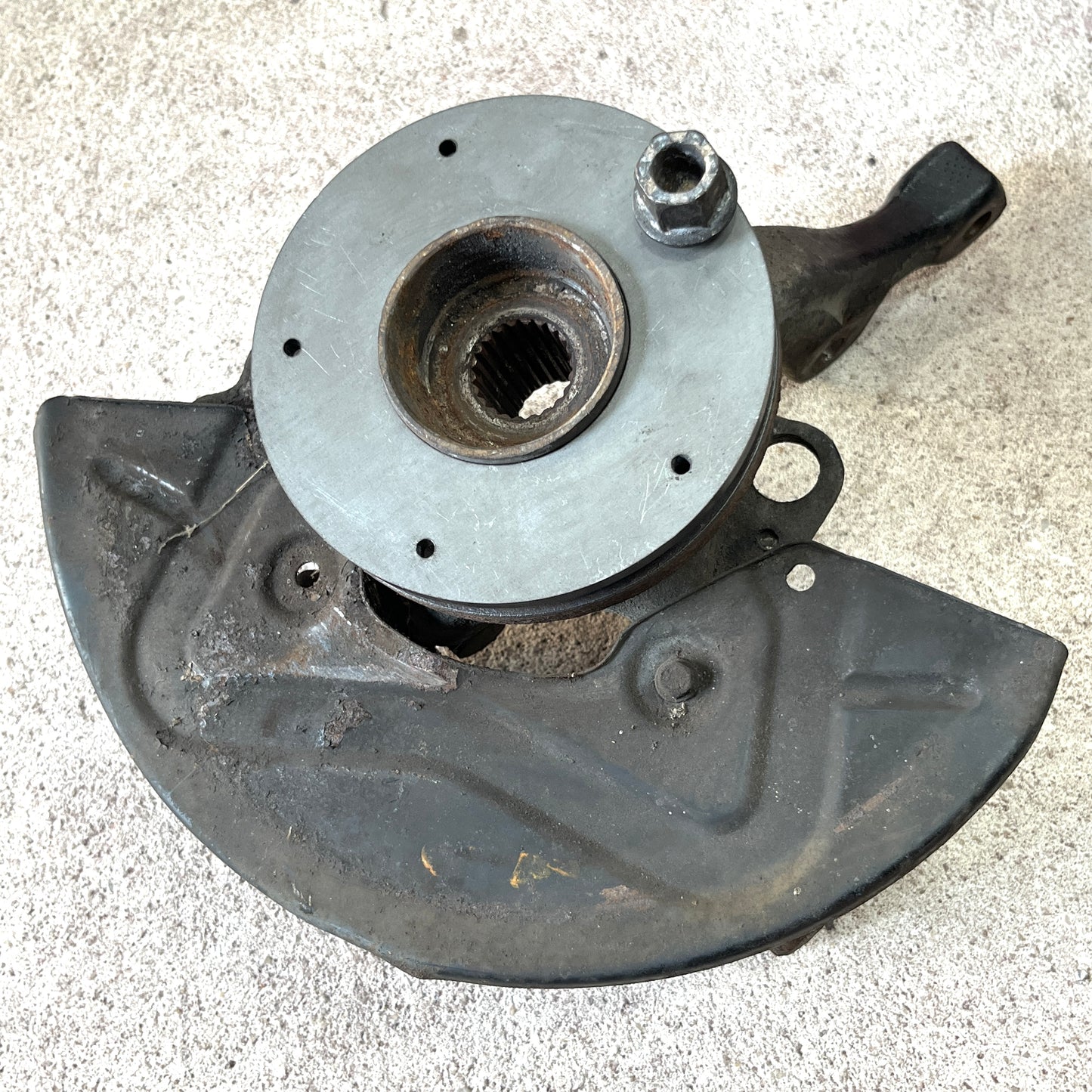

- Use the large hole to bolt the template to the hub using a normal 12mm wheel bolt to make sure it does not move around (do not over tighten).

- The side marked "inside" will face the hub surface.

- Drill four 4mm pilot holes making sure to keep the drill bit perpendicular to the face of the hub.

- Remove the drilling template and step up your drill sizes to 5mm, 6mm, 8mm, 10mm lastly a 10.5mm (or equivalent) drill.

- Tap using a high quality 12X1.5mm tap with plenty of tapping fluid.

• Laser Cut Steel
• Made in the USA
